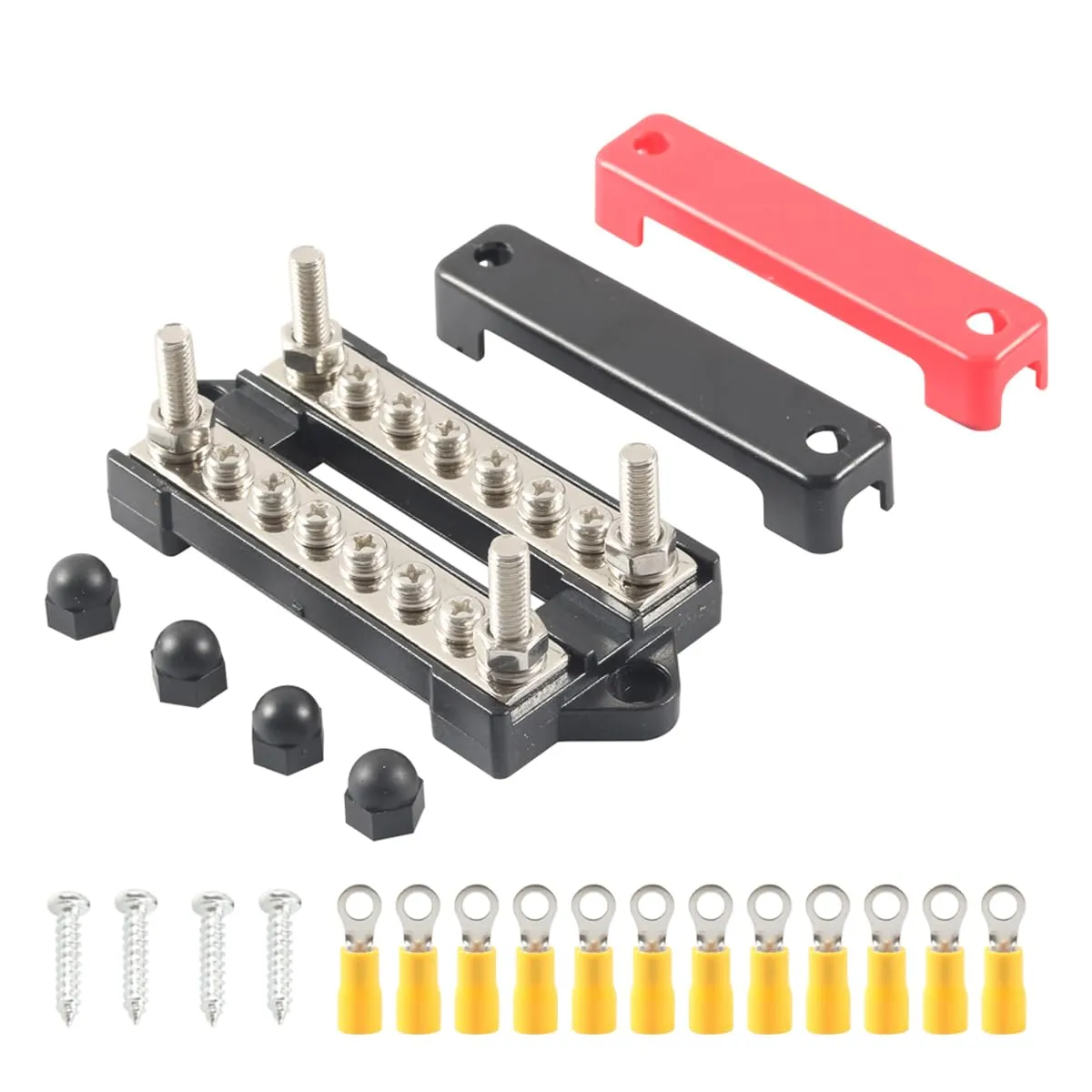

- The Bus bar consists of brass, PC plastic base and stainless steel fittings
- Battery bus bar With 12 x 8# terminal studs,for voltage Max 300V AC, 48V DC, and continous amperage :Max 130A AC, 150A DC.
- It can be use for the positive and negative wiring at the same time, and can also be used as 12 posts alone for positive or negative lines.
- Note: The color of the terminal is yellow or blue(As picture 1st and Sec.).
This Battery bus bar With 12 x 8# terminal studs, for voltage Max 300V AC, 48V DC, and continous amperage :Max 130A AC, 150A DC. It is suitable for use on a boat, in a car or in RV.
Specification:
Product Type:BusBar
Material:PC Copper
Max Voltage:300V AC, 48V DC
Max Continuous Amperage:130A AC, 150A DC
Terminal Studs:4 xM6(1/4"); 12 x M4 (8#)
Distance between Screw center:95mm
Mounting Diameter:5mm
Suitable: Suitable for automotive, car, marine, boat, Solar power line renovation,etc.
Note: The color of the terminal is yellow or blue (please leave your preference between blue and yellow?). We will standardize the use of the more preferred color going forward.
Included:bus bar*1 pc; Screws *4 pcs;Terminale*12pcs
- Package Dimensions : 4.8 x 2.09 x 1.54 inches; 1.36 ounces
- Date First Available : September 28, 2024
- Manufacturer : Iqihui
- Country of Origin : China
