Converters
Power Converters
Features:
*All epoxy sealed containers with waterproof die-cast aluminum housing;
*Light compact convenient to use and transport;
*Non-isolated; High efficiency:> 95%;
*Operating temperature: -40 ° ~ 85° (max: 85°);
*With overload / over-current / over / low voltage protection stable performance; Auto recovery.
Specification:
Input Voltage:36V 48Vnominal
Input range: 30V to 60V
Output Voltage: DC 24V ±1%
Max Output Current: 5A/10A/15A/20A
<;;100mV
<;;0.02A
Line Regulation:±0.02%
LoadRegulation:±0.02%
Efficiency:>95%

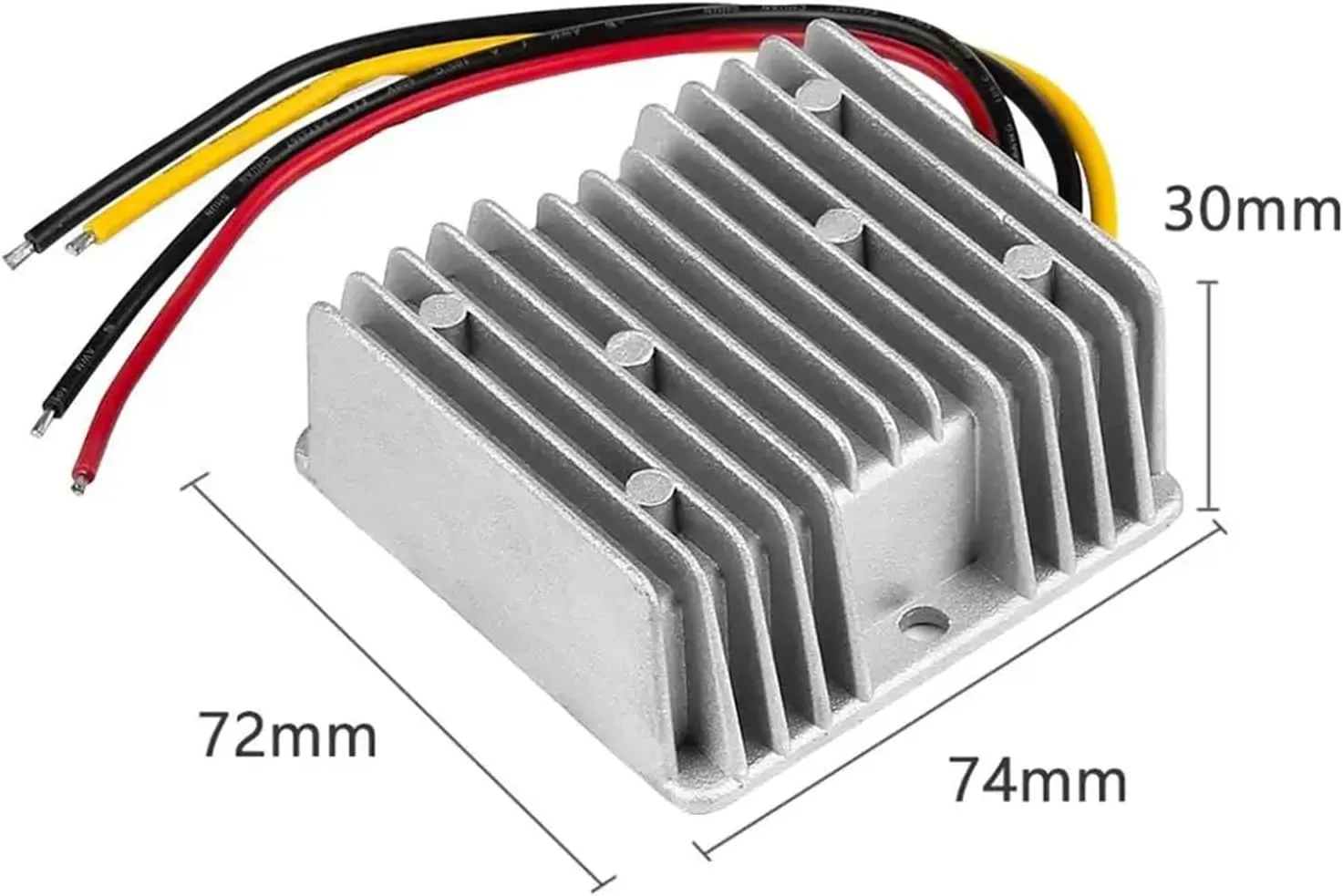

Size: 74*72*30mm

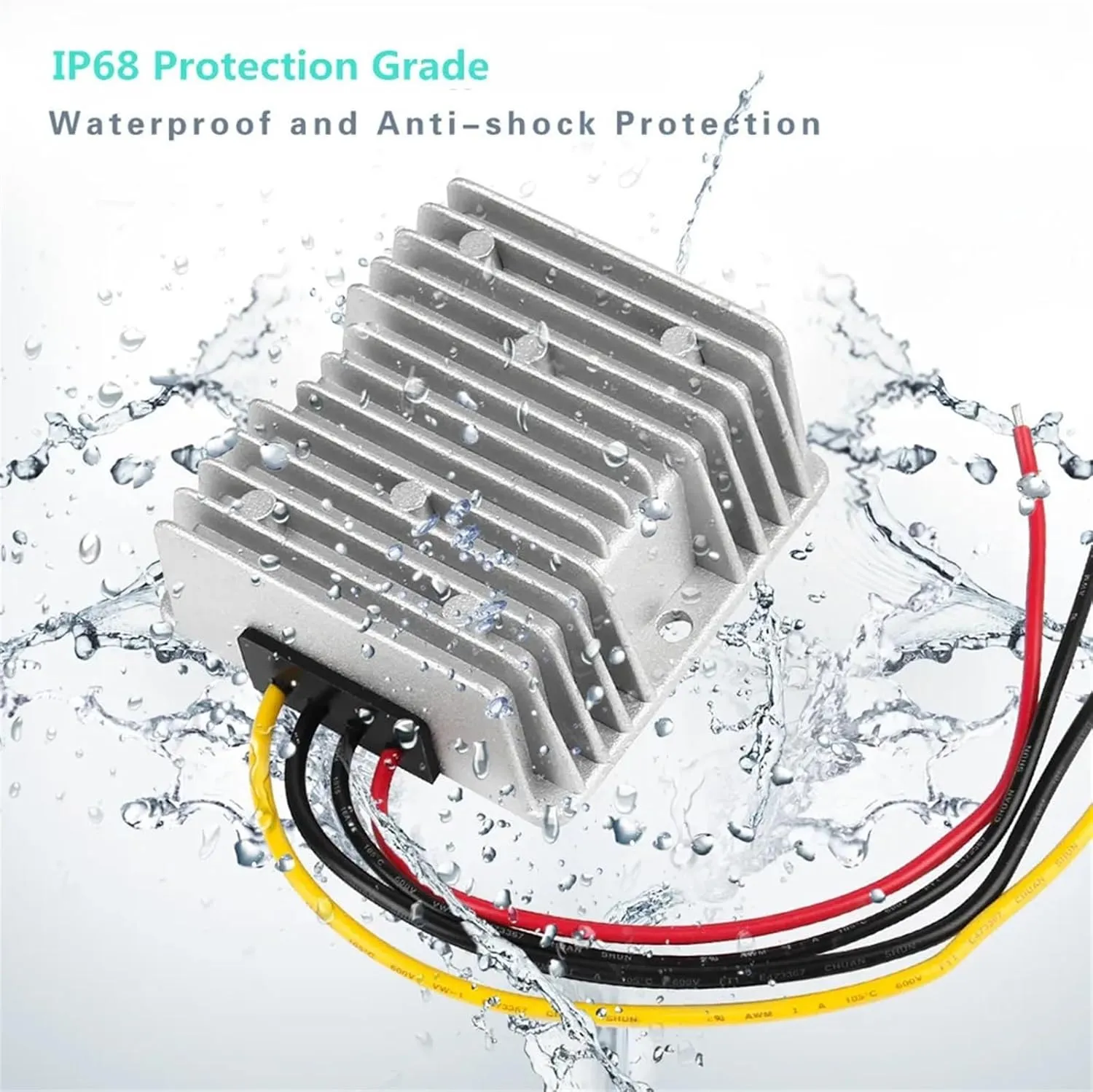

Waterproof:IP68
Package Include:
1*DC-DC Converter
