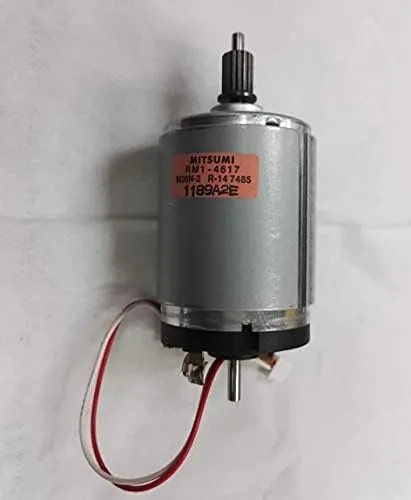

[Voltage range]: DC 3-24V
[Motor diameter]: 35.5mm
[Body Length]: 51mm
[Motor shaft length]: 18mm
[Motor shaft diameter]: about 3.17mm
[Motor weight]: about 196.68g
[Other features]: Exquisite workmanship, large torque, good power generation efficiency, long life of carbon brush motor
(1) Lightly turn the motor shaft by hand to emit current, which can light a string of lights with dozens of LED diodes, and can also drive a small hollow cup motor to rotate.
(2) Under strong direct sunlight at noon in summer, the 3v100ma solar panel can drive this motor, which is enough to see that this motor has high working efficiency and extremely low current consumption.
12V voltage test: no-load current 100ma, locked-rotor current 1.52A, no-load speed 2100 rpm
24V voltage test: no-load current 110ma, blocking current is very large, no-load speed 5000 rpm
Item specifics:
Torque: unknown
Usage: Home Appliance,DIY,Eyelash Machine
Model number: 540/545
Output power: 10W
Continuous current(a): 0.16-0.22A
Protect feature: Totally Enclosed
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 2
Type: Gear Motor
Certification: CCC,ce
Voltage(v): 3-24V
Speed(rpm): 2100-5000RPM
