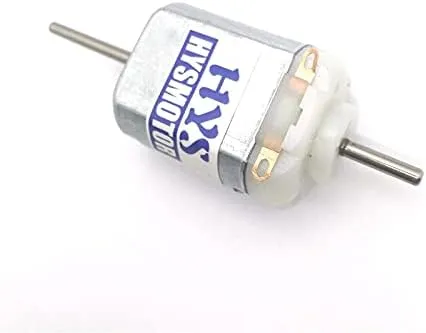

The 130 motor can be used as a hand-cranked generator or a wind-driven generator. It can turn on 3vled lamps with one hand directly, and the power generation efficiency is high. In addition, the motor can also be connected to a solar panel and be powered by solar energy. Moreover, the motor brush is a carbon brush, which can be powered on for a long time, with wear resistance and long life.
Working voltage: DC 1.5V-12V
Reference speed: 3000RPM (6V), 5400RPM (12V)
Reference current: at 3V, no-load current 30MA, locked rotor current 90ma
Motor size: length 25 * thickness 20 * height 15mm
Motor shaft diameter: 2mm
Out shaft length: 19mm at the front end, 9mm at the rear end
Motor weight: about 18.45g
Item specifics:
Usage: BoAt,car,Fan
Model number: 130 double shaft high speed DC motor
Protect feature: Totally Enclosed
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Micro Motor
Certification: CCC,ROHS
Origin: Mainland China
Voltage v: DC1.5-12V DC12V 6V 3V
Mini motor double shaft length: 9mm 19mm
Dc 3v moteur current: 30ma
Dc 6v speed micro motor: 3000rpm
Dc 12v speed small moter: 5400rpm
Shaft reversed moteur toys: High Speed
