- Support a variety of fast charging protocols:PD3.0/2.0, PPS/QC4 , QC3.0/2.0, FCP, AFC
- USB-C port power supply;Turn some traditional DC-powered devices into TYPE-C port power supply

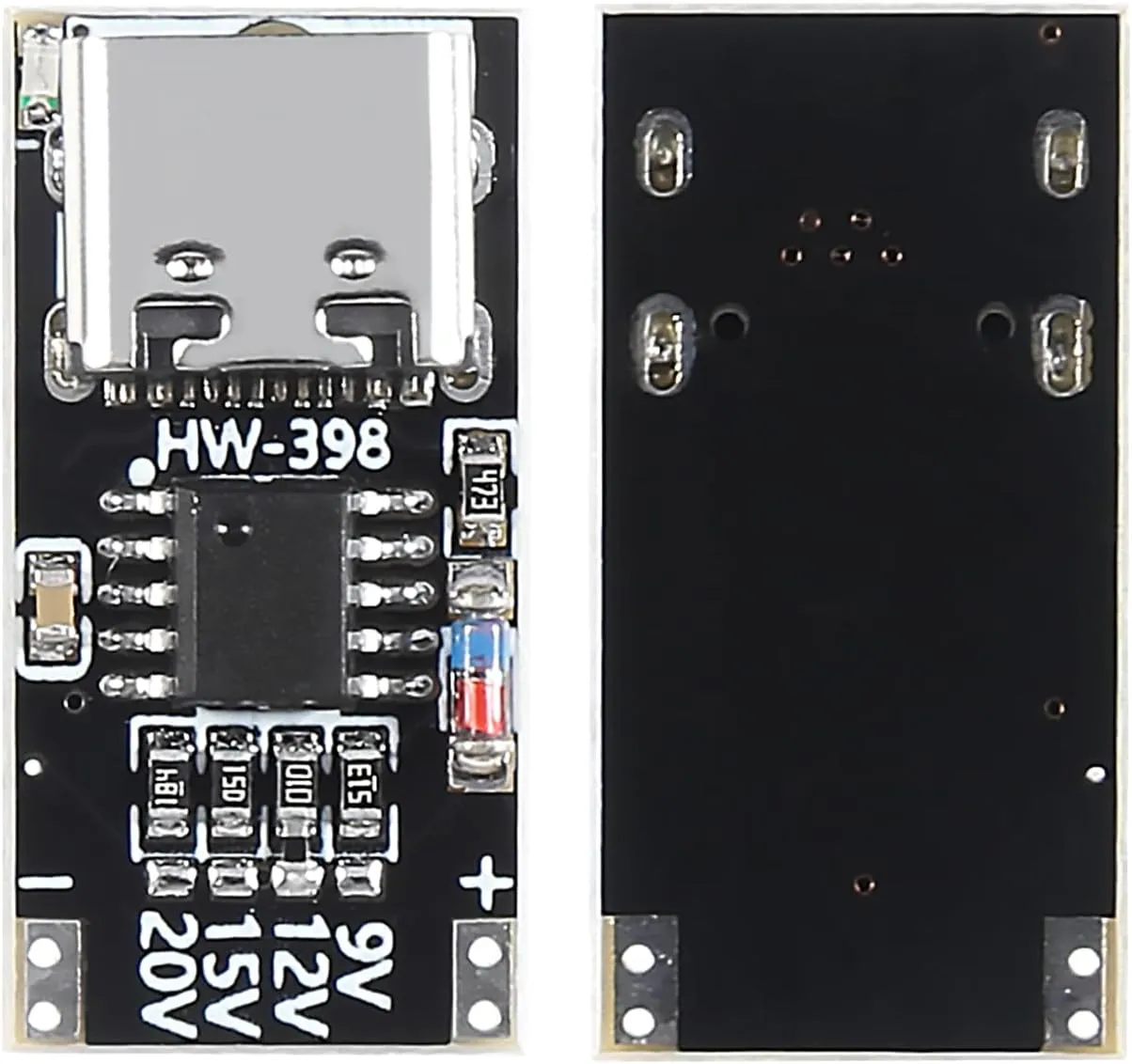

- The size of the PD decoy board: 23*11.5*4mm
- Maximum support 5A; TYPE-C port power supply
- Package Included：8PCS PD/QC Decoy Board Fast Charge USB Boost Module Type-c PD2.0 PD3.0 9V 12V 15V 20V Fast Charge Trigger Polling Detector Module
The function of this PD/QC decoy board:
1. Support a variety of fast charging protocols: PD3.0/2.0, PPS/QC4 , QC3.0/2.0, FCP, AFC
2. Trick out the voltage of the fast charging charger/charging treasure and use it as a DC power supply. For example, let the fast charging power bank output 9 volts and 12 volts to supply power to routers, light cats, etc.
3. Turn some traditional DC-powered devices into TYPE-C port power supplies.
Note:
1. Mobile phone chargers/charging treasures must first support fast charging such as PD/QC in order to deceive the fast charging voltage.
2. Fix the four gears of 9/12/15/20 volts, what voltage is needed, just short the corresponding pads.
3. For example, if you set the decoy to 20 volts, but your charger is only up to 9 volts, it will automatically downshift to deceive the output to 9 volts.
4. The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.
Product List:

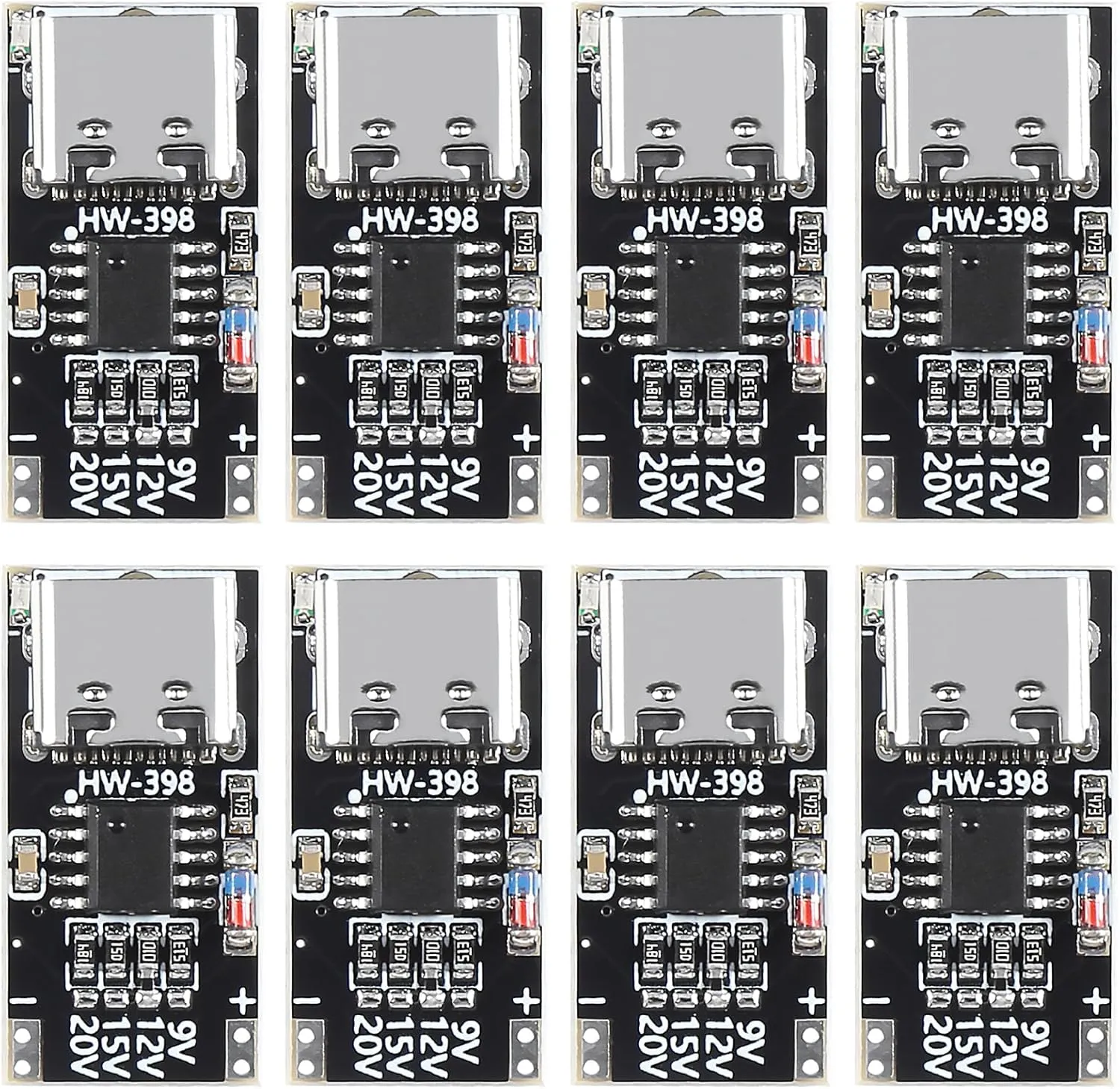

8PCS Type C PD/QC decoy board fast charge USB boost module
