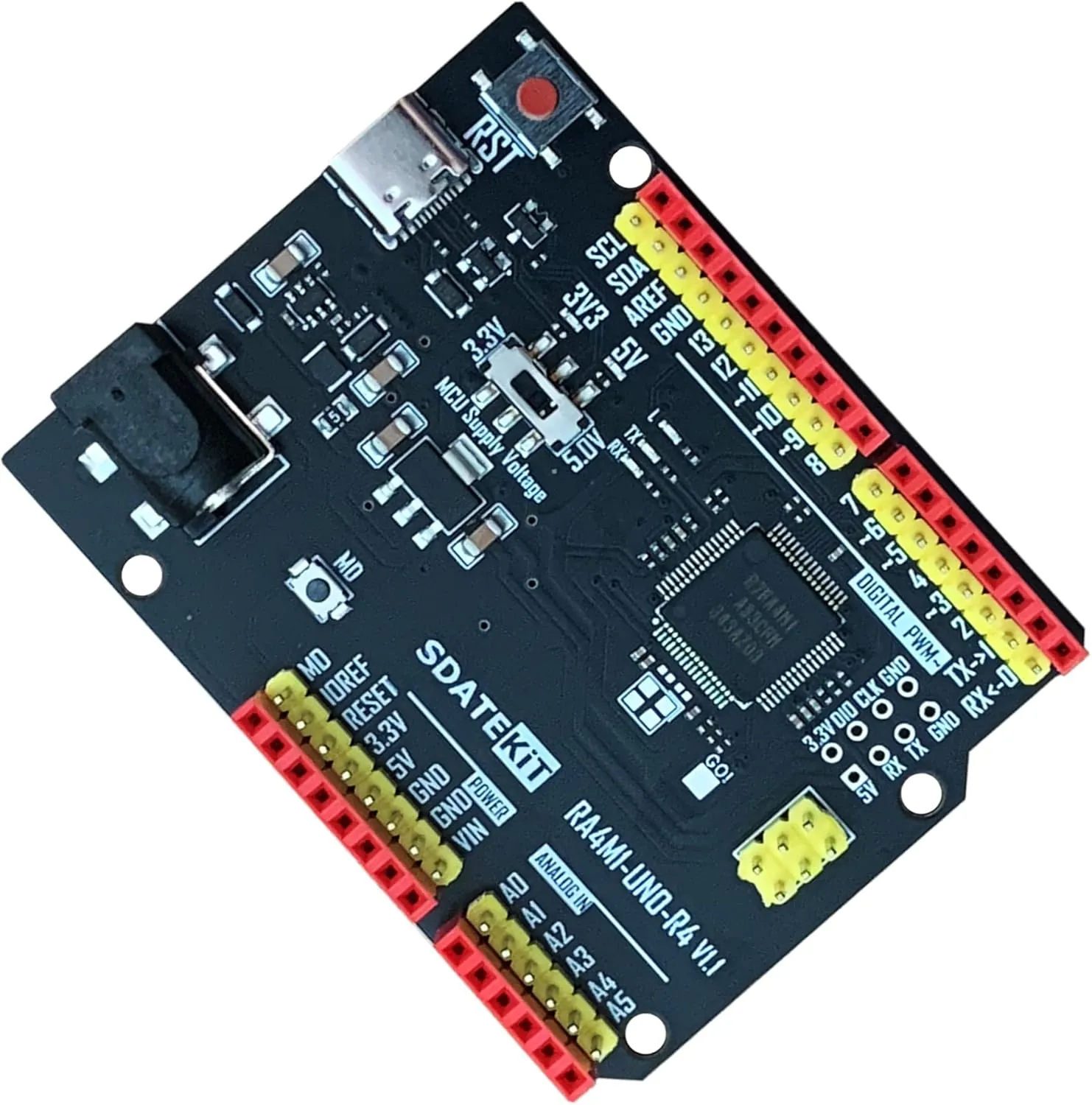

- 2X Voltage & Auto-Protection: 6-50V Ultra-Wide Input. Built-in self-recovery fuse prevents burnout from wiring errors, while dual voltage regulation (DC-DC LDO) ensures stable 5V output even with unstable sources.
- Dual Voltage & Easy Updates: 3.3V/5V Switch BOOT Button. Adapt to 3.3V/5V sensors (vs. fixed 5V on classic UNO) without level shifters. One-click firmware upgrades via BOOT button eliminate debug tools.
- Full Arduino UNO R4 Compatibility: Directly reuse UNO R4 shields and libraries. Dual connectivity (male headers female sockets) fits personal projects and industrial modules, while the 2.54mm SWD port (vs. 1.27mm on official R4) works with standard debug cables.
- Pro-Level Peripherals Built-In: 12-bit DAC, CAN Bus & HID Support – Drive industrial actuators (PLCs, LED arrays) via 24V inputs or simulate keyboards/mice through USB-C. All without extra modules – ideal for IoT hubs or robotics projects.
- UNO R4 Performance with Enhanced Power: 48MHz Cortex-M4 – Match R4 Minima’s 256KB Flash for complex tasks (solar/ML), but with 50V input flexibility (vs. R4's 24V) for extreme environments.
Product Specifications:
- Microcontroller: Renesas RA4M1, based on the Arm Cortex-M4 architecture.
- USB Interface: Type-C, for programming.
- Digital Pins: 14 digital I/O pins.
- Analog Pins: 6 analog input pins.
- DAC Pin: 1 DAC pin.
- PWM Pins: 6 PWM pins.
- Communication Interfaces:
- UART: 1 UART interface.
- I2C: 1 I2C interface.
- SPI: 1 SPI interface.
- CAN: 1 CAN bus.
- Operating Voltage: The board operates at 5V or 3.3V.
- Input Voltage: Input voltage range is 6-50V.
- Pin Current: Each I/O pin can handle a DC current of 8mA.
- Clock Speed: Maximum core frequency is 48 MHz.
- Memory: 256 kB Flash memory and 32 kB RAM.
- Dimensions: Width is 69mm, length is 53mm.
