- Parameters --- DROK step up converter input voltage range 5V-11V, output voltage 12V, can be used to convert 6v to 12v, output current 5A, output power 60W, conversion rate more than 93%.
- Application --- the voltage regulator module can be applied to car audio, radio, walkie-talkie monitoring, electric fan, solar panel, photovoltaic panel, motors, industrial equipment etc.
- Features --- our power supply is waterproof, dustproof, moistureproof, shockproof, can be applied to all kinds of harsh working environment.

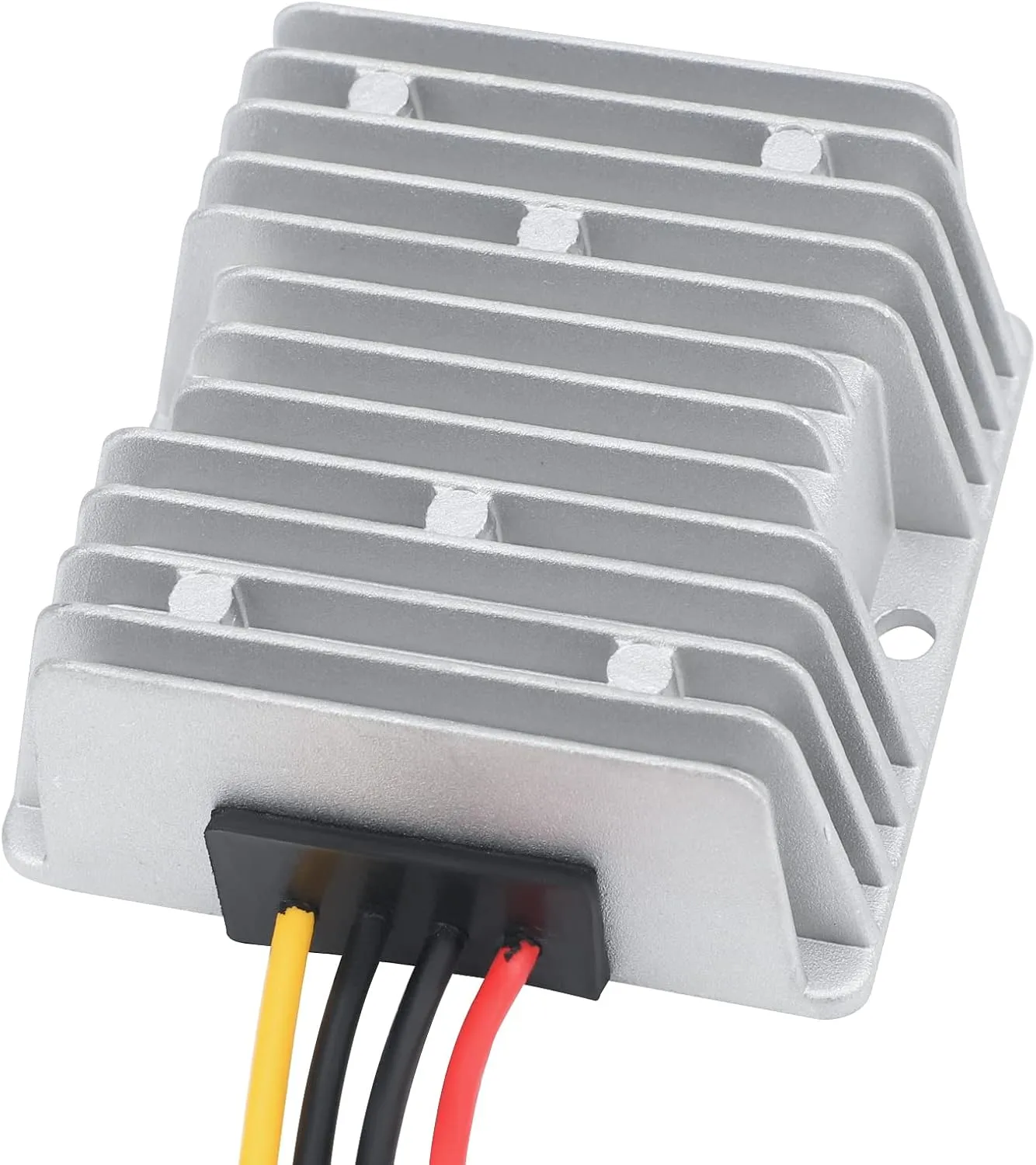

- Aluminum Shell --- the stepup transformer adopts Aluminum shell, which will be more sate and easy to cooling than plastic shell.
- Protection --- the boost converter is designed with over-current protection, overheat protection, instant high voltage protection.

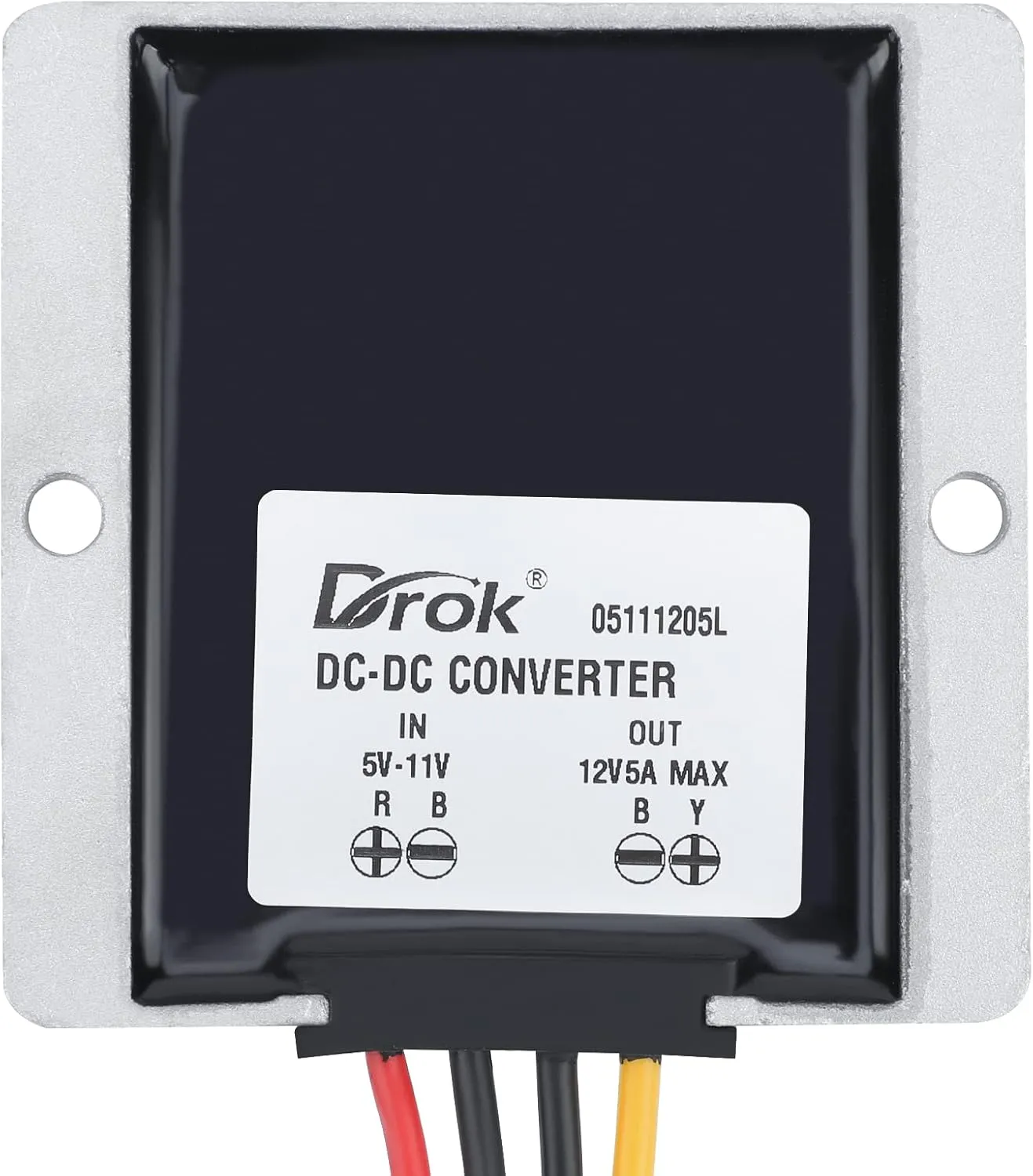

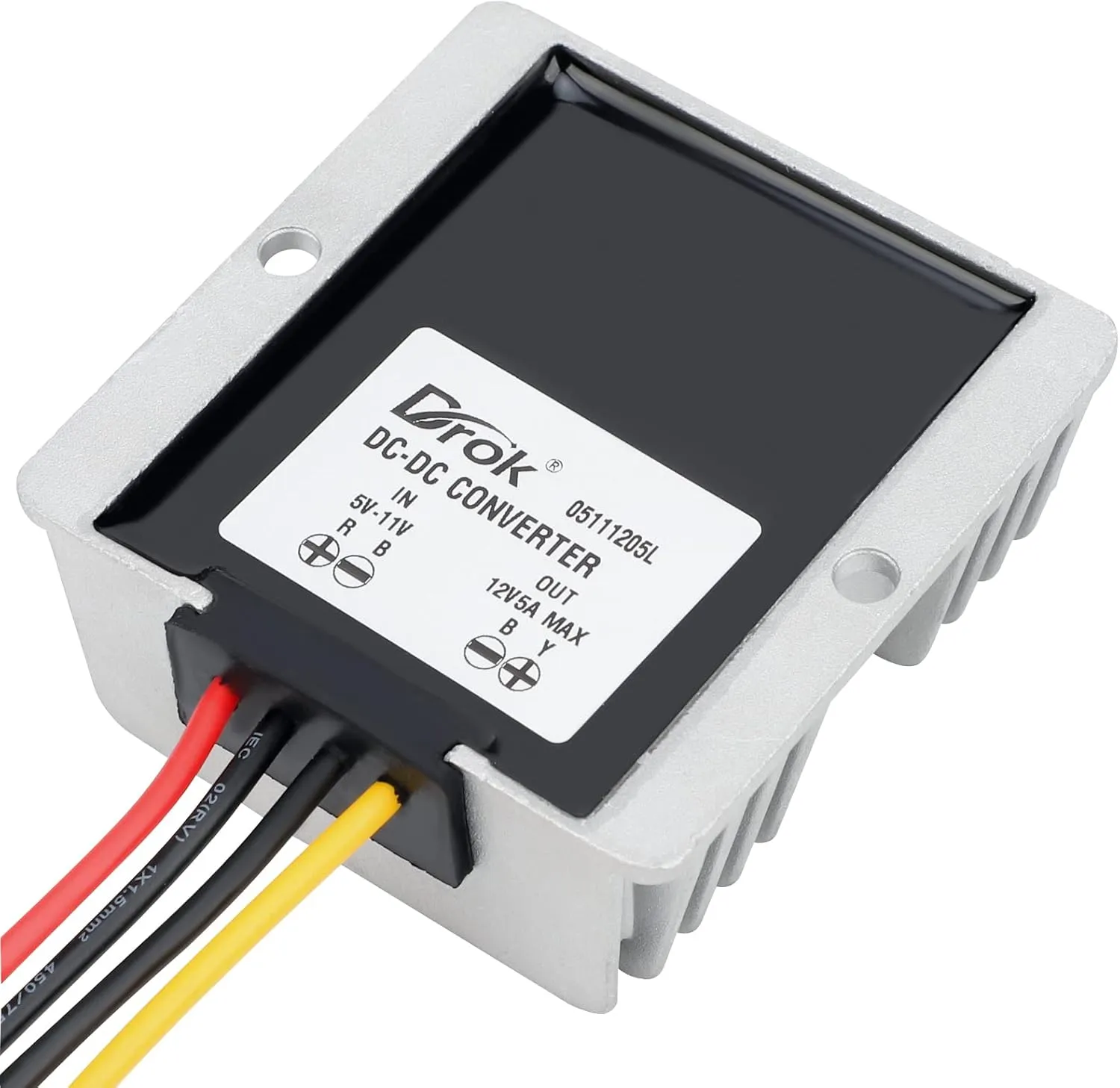

DROK 12V 5A Boost Converter
Parameters:
Input voltage: DC 5-11V
Output voltage: DC 12V
Output power: 60W
Output current: 5A
Continuous output current: 5A
Transfer efficiency: over 93%
Working temperature: -40 to 85 ℃
Dimension: 66*60*22mm / 2.60*2.36*0.87in
Mounting wire length: 13-14cm / 5.12-5.51in
Wiring instruction:
Input side: red wire , black wire -
Output side: yellow wire , black wire -
Package included:
1x DC 6V to 12V Step Up Converter
