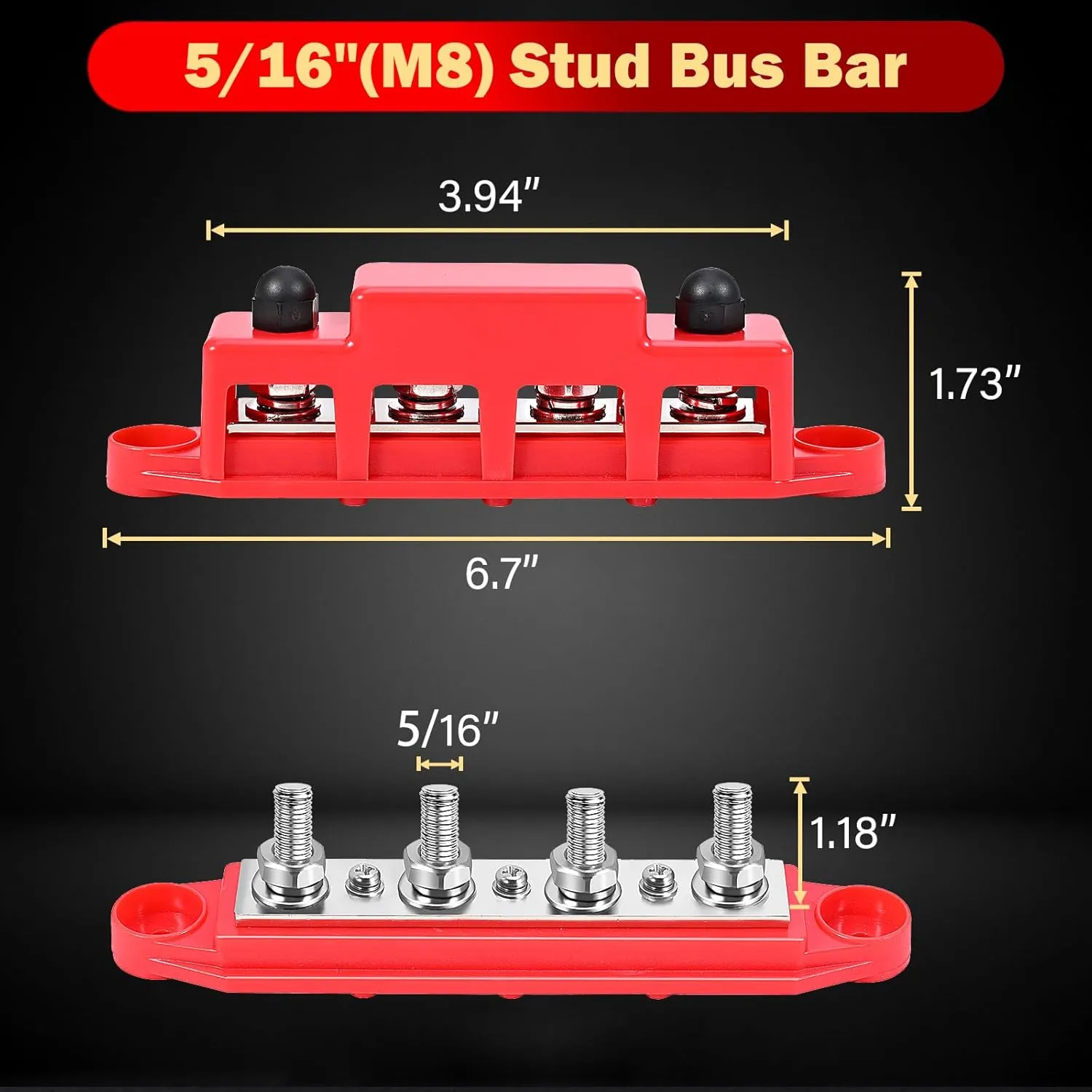

- Specification - 12-48V red & black bus bar with screw: 3 x #8(M4) terminal screws, 4 x 5/16 "(M8) terminal stud. The dimensions(L*W*H): 6.7*1.3*1.73 inch. Weight: 0.41kg. All the terminals of our bus bars are made of stainless steel, which will be less prone to rust compared to other Iron terminal busbar and can be used for a longer time.
- Heavy Duty - Power distribution block Max 150V AC or 48V DC voltage. 3 x #8 screw, which makes the 12V junction block able to accept large size terminal connectors and wires. The nylon bottom is also secured by M8 post which makes it more fixed and won't strip, keep the wires neat.

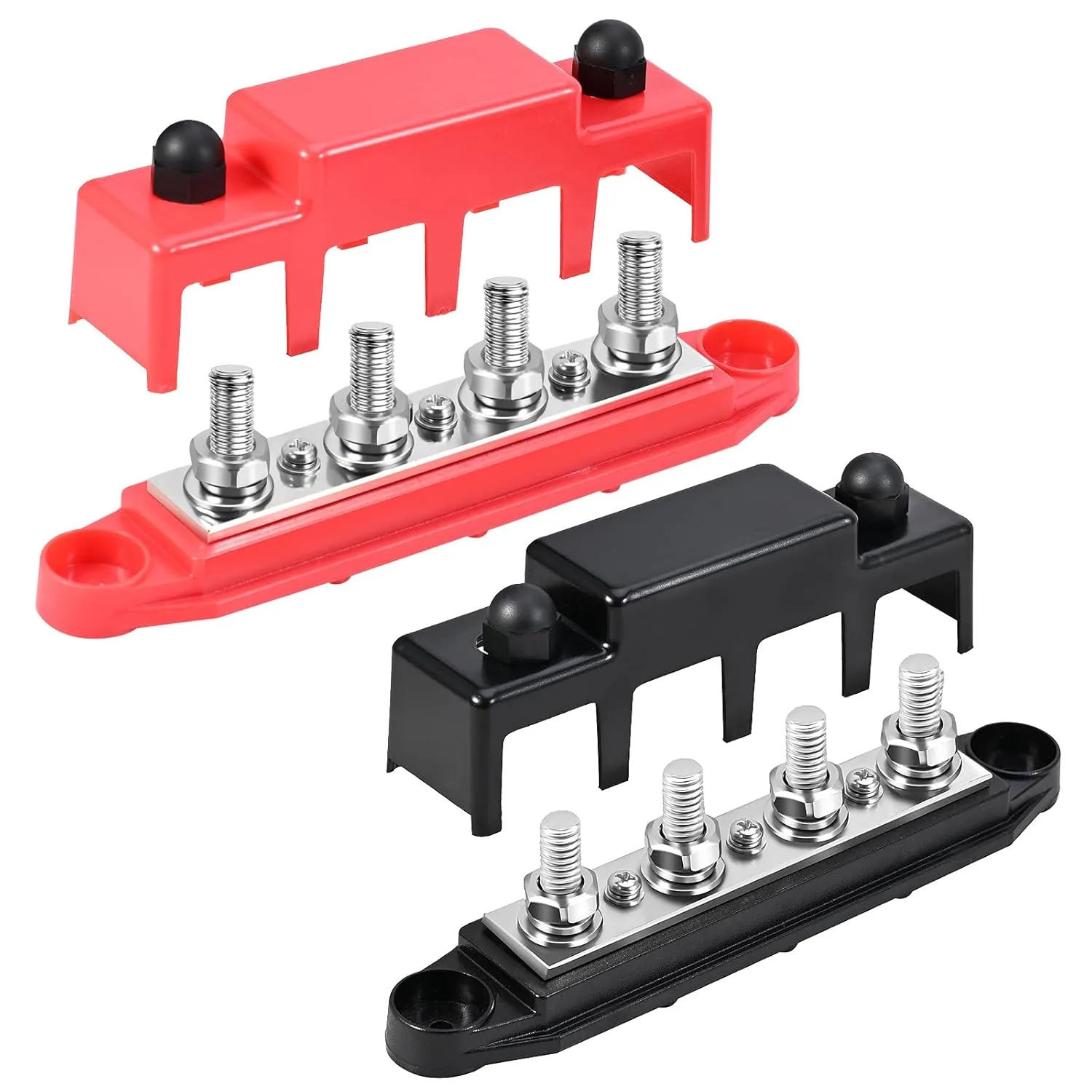

- Superior Quality - Nickle plated brass busbar plates offer low resistance, maximum conductivity, and corrosion protection, stability and the oxidation resistance, extend the service life. The nylon nuts connect to two external studs, removable Nylon busbar cover can cover exposed areas to prevent accidental short circuits. The insulated nylon base is flame-retardant, Superior Insulation & Strength.
- Wide Application - Bus bar is excellent for managing wires and distributing power, have plenty of connection points for both positive and negative wiring terminals, keep the circuit neat and orderly, make your wires doesn't look like a rat's nest under the hood anymore, reducing the possibility of short circuits. Suitable for cars, trucks, solar, caravans, ships and yachts, etc.
- Satisfactory Service - Whether before or after sale, you can contact us at any time if you have any questions. We will do our best to resolve the issue for you in the fastest time possible. To provide customers with high quality products and comfortable service experience is our always aim.
- Package Dimensions : 7.6 x 2.95 x 2.32 inches; 14.39 ounces
- Date First Available : July 15, 2024
- Manufacturer : FEITON
- Country of Origin : China
