- The Li-ion Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Pi from a 14500 battery, makes the Pi becomes a portable device.
- It will charge the battery as well, supports bi-directional quick charge.
- Lithium battery protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and short circuit protection.
- This module can be used as a universal mini power bank, also works with other 5V devices.
- This is not a UPS, please note that the Raspberry Pi will restart when you connect it to the Pi. If you need a UPS, please check the UPS HAT.

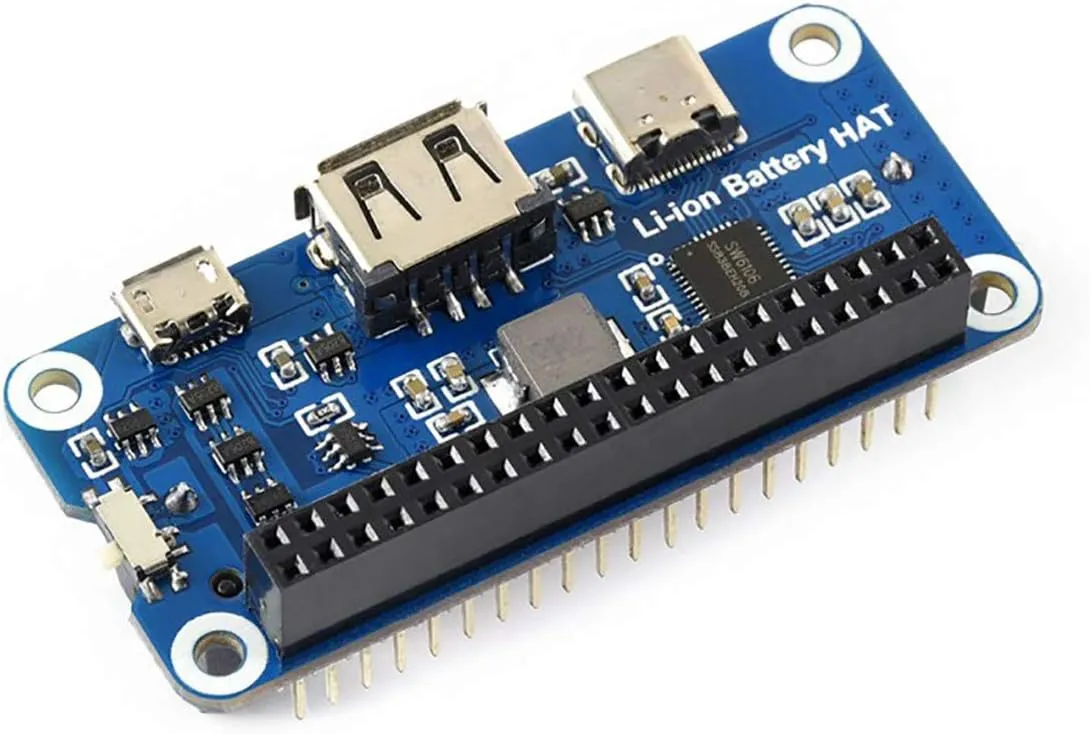

Li-Ion Battery HAT For Raspberry Pi, 5V Regulated Output, Bi-Directional Quick Charge
Features
Onboard SW6106 chip, supports bi-directional quick charge, supports multi quick charge protocols like PD/QC/FCP/PE/SFCP
Lithium battery protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and short circuit protection
Onboard indicators: quick charge, warning, and power capacity
Specifications
Output voltage: 5V
Applicable battery: 3.7V 14500 lithium battery (4.2V when full charged)
Dimension: 65mm × 30mm
Mounting hole size: 3.0mm
Development Resources
Please contact us or visit the official website of Waveshare
PACKAGE CONTENT

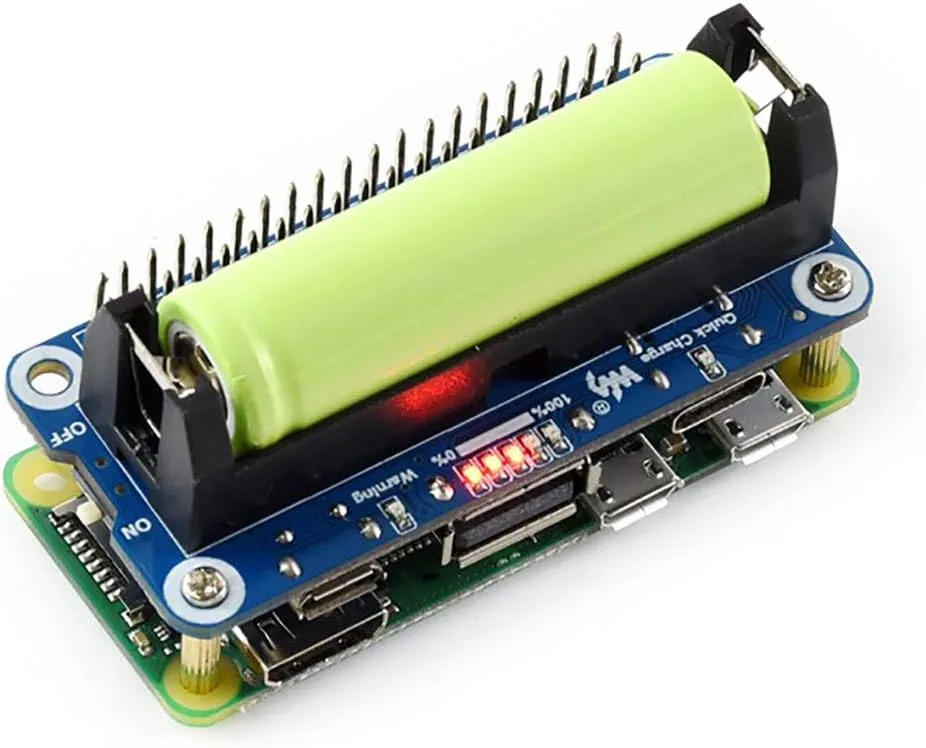

Note: the Raspberry Pi and 14500 battery in the photo are NOT included.

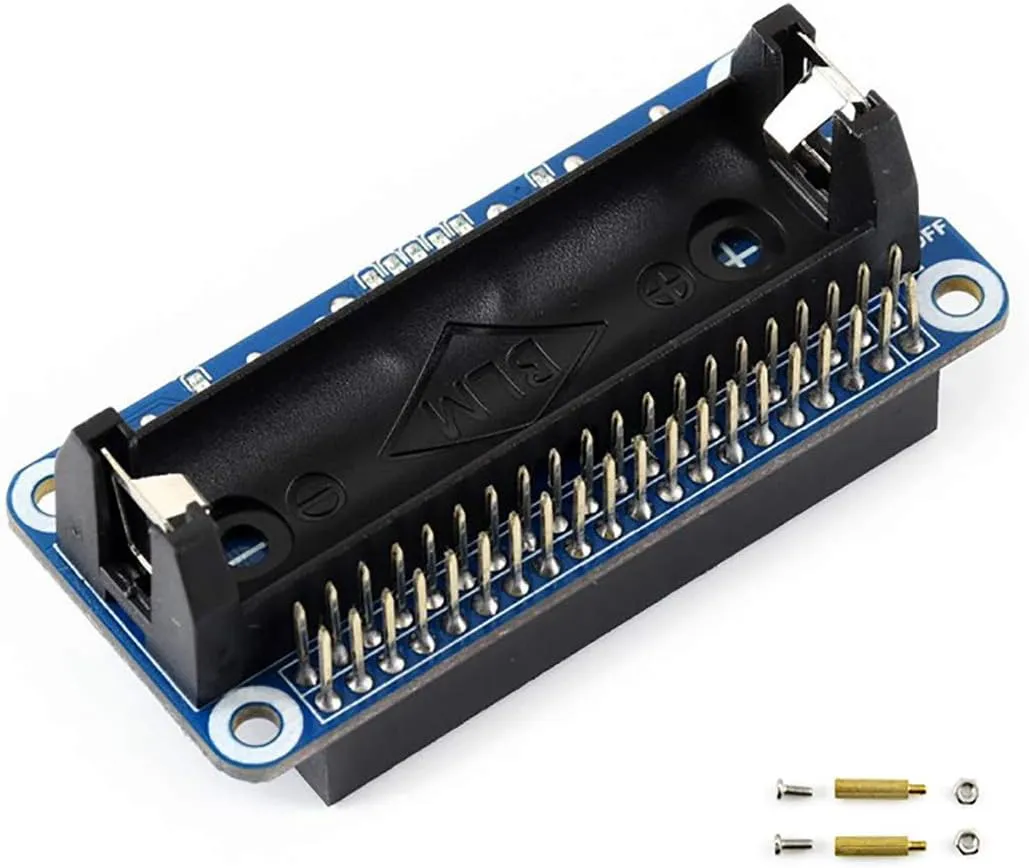

Li-ion Battery HAT x1
RPi screws pack (2pcs) x1
